GIGABYTE Alaplap AM4 B550M DS3H AMD B550, mATX

• CPU

  1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors

  (Please refer „CPU Support List” for more information.)

• Chipset

  1. AMD B550

• Memory

  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. 3rd Gen AMD Ryzen™ Processors:

     Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:

     Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for ECC Un-bufferedDIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer „Memory Support List” for more information.)

• Onboard Graphics

  Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

     * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

     * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

  Maximum shared memory of 16 GB

• Audio

  1. Realtek^®ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel

     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.

• LAN

  1. Realtek^®GbE LAN chip (1000 Mbit/100 Mbit)

• Expansion Slots

  1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode

     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

  1. Supporting PCIe 3.0 x4 mode

  1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

  1. Supporting PCIe 3.0 x1 mode

• Storage Interface

  1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

  1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

  1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

  1. Supporting SATA and PCIe 3.0 x2 SSDs

  4 x SATA 6Gb/s connectors, integrated in the Chipset:

  1. Support for RAID 0, RAID 1, and RAID 10

• USB

  CPU:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 2 x addressable LED strip headers
  6. 2 x RGB LED strip headers
  7. 1 x CPU cooler LED strip/RGB LED strip header
  8. 2 x M.2 Socket 3 connectors
  9. 4 x SATA 6Gb/s connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x USB 3.2 Gen 1 header
  13. 1 x USB 2.0/1.1 header
  14. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  15. 1 x serial port header
  16. 1 x Clear CMOS jumper
  17. 1 x Q-Flash Plus button

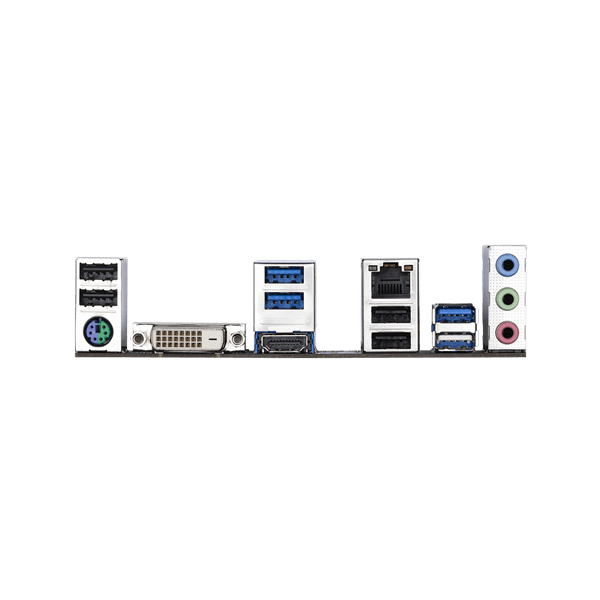

• Back Panel Connectors

  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DVI-D port
  3. 1 x HDMI port
  4. 4 x USB 3.2 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks

• I/O Controller

  1. iTE^®I/O Controller Chip

• H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control

     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center

     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

     @BIOS

     EasyTune

     Fast Boot

     Game Boost

     ON/OFF Charge

     RGB Fusion

     Smart Backup

     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install

• Bundled Software

  1. Norton^®Internet Security (OEM version)
  2. Realtek^®8118 Gaming LAN Bandwidth Control Utility

• Operating System

  1. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 24.4cm x 24.4cm

• Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Gyártó: GIGABYTE
Audio: 7.1 HD
Chipset gyártó: AMD
Foglalat típusa: AM4
Form Factor: mATX
Grafikus foglalat: 2 x PCI-Ex16x
VGA integrált: Nincs
Kivitel: Dobozos
LAN1: 10/100/1000 Mb/s
Max memória: 128 GB
Memória foglalatok száma: 4 db
Memória órajel: 3200 MHz
Memória típus: DDR4
Quad Channel: Nincs
PCI foglalatok száma: 0 db
PCI-E foglalatok száma: 1 db
Raid: Igen
SATA III: 4 db
USB 2.0: 6 db
USB 3.0: 0 db
USB 3.1: 6 db
PS/2 Port: 1 db
HDMI: Van
DVI: Van
D-Sub: Nincs
Display Port: Nincs
Thunderbolt: Nincs
Soros port: Nincs
Párhuzamos port: Nincs
Wireless: Nincs
M.2 foglalat: Van
