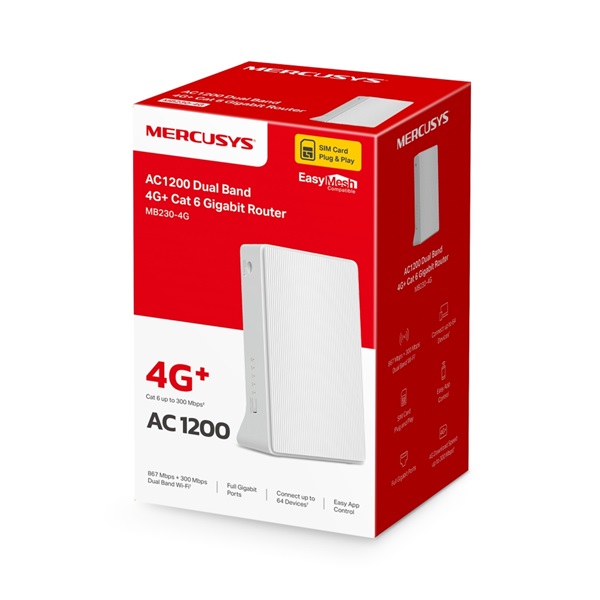

MERCUSYS 3G/4G Modem + Wireless Router AC1200 1xWAN/LAN(1000Mbps) +1xLAN(1000Mpbs), MB230-4G MB230-4G

MERCUSYS 3G/4G Modem + Wireless Router AC1200 1xWAN/LAN(1000Mbps) +1xLAN(1000Mpbs), MB230-4G

Wireless Standards

IEEE 802.11ac/a/b/g/n

Frequency

5 GHz, 2.4 GHz

WiFi Speeds

867 Mbps at 5 GHz

300 Mbps at 2.4 GHz

Reception Sensitivity

11g 6Mbps: -95dBm

11g 54Mbps: -77dBm

11n HT20 MCS7: -74dBm

11n HT40 MCS7: -71dBm

11a 6Mbps: -92dBm

11a 54Mbps: -75dBm

11ac VHT20 MCS8: -70dBm

11ac VHT40 MCS9: -65dBm

11ac VHT80 MCS9: -61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK / WPA3-SAE

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

Others

Package Contents

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB230-4G)

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

Software

DHCP

Server

Hardware

Dimensions

95×61.05×165.97 mm

Interfaces

1× Gigabit LAN/WAN Port

1×Gigabit LAN Port

1× Nano SIM Card Slot

Button

WPS/Reset Button

Network Type

EU:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40(2600/2300MHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

Wireless
